Residential Basement Waterproofing Work

Location: Rykert Crescent, Toronto, ON M4G 2S9

Sales Representative: Tony Novara

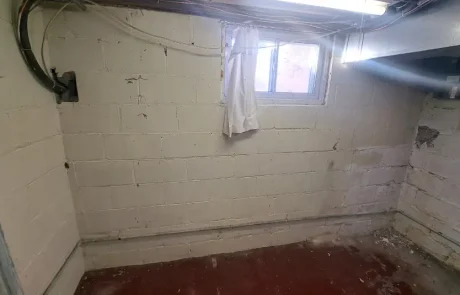

The client contacted The City Wide Group after noticing a water leak in the basement at the residential property located at 104 Rykert Crescent, Toronto. The concern involved active water infiltration along a section of the foundation wall. Following an on-site inspection, interior basement waterproofing was recommended to address the water entry and prevent future moisture-related issues.

 The proposed scope of work includes approximately 16.5 linear feet (LF) of interior basement waterproofing, along with the supply and installation of a Liberty sump pump system to improve interior drainage and overall water management.

 Scope of Work

    • Approximately 16.5 LF of interior basement waterproofing along the affected portion of the foundation wall.
    • Supply and install a Liberty sump pump system to efficiently manage groundwater and reduce hydrostatic pressure.
    • Installation of interior drainage components to collect and redirect water to the sump system.
    • Restoration of interior slab and cleanup upon completion of work.

Challenges

    • Active water leakage along the interior foundation wall requires timely intervention.
    • Interior trenching and sump pump installation required.
    • Proper routing of sump pump discharge to comply with municipal guidelines and site conditions.

Solution and Implementation Process

  1. Site Preparation
    • Interior work area identified, marked, and protected to minimize disruption to the homeowner’s living space.
    • Basement contents near the work zone cleared or protected as required.
  1. Interior Trenching
    • Concrete slab trenched along approximately 16.5 LF of the interior foundation wall to allow access to the footing.
    • Trenching was performed with care around structural components and existing utilities.
  1. Foundation Preparation
    • Exposed foundation wall cleaned to remove dirt, debris, and loose material.
    • Surface prepared to ensure proper installation of the waterproofing system.
  1. Waterproofing System Installation

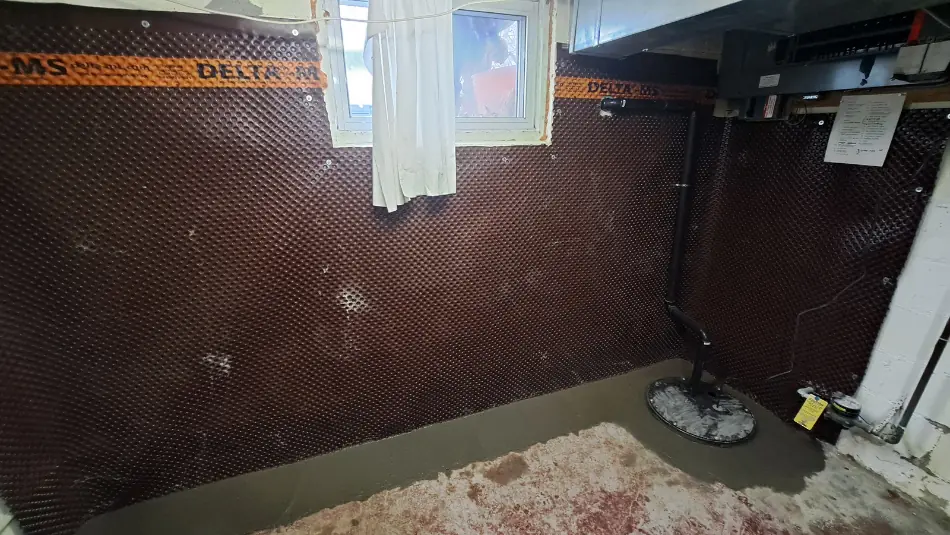

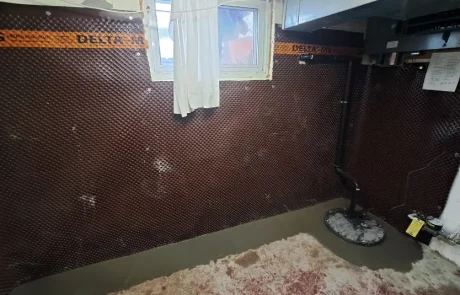

    • Installation of an interior waterproofing membrane to direct moisture into the drainage system and relieve hydrostatic pressure along the foundation wall.
  1. Drainage & Sump Pump Installation

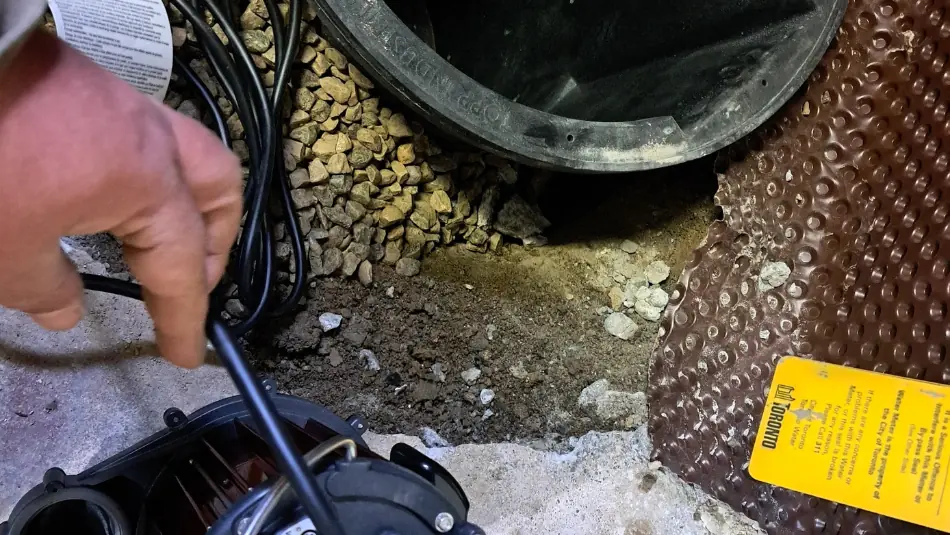

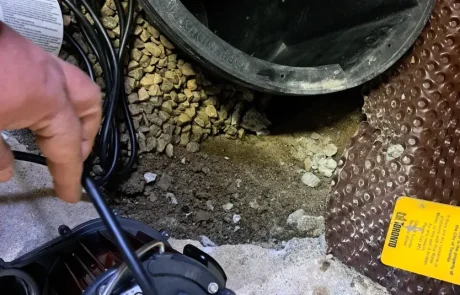

    • New 4” perforated weeping tile installed at footing level and surrounded with clean ¾” gravel to promote proper drainage.

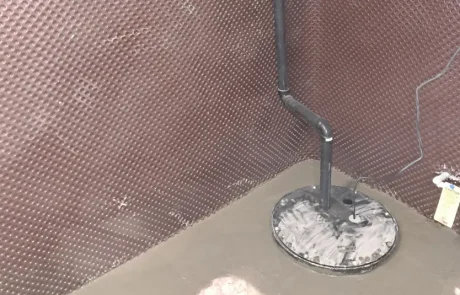

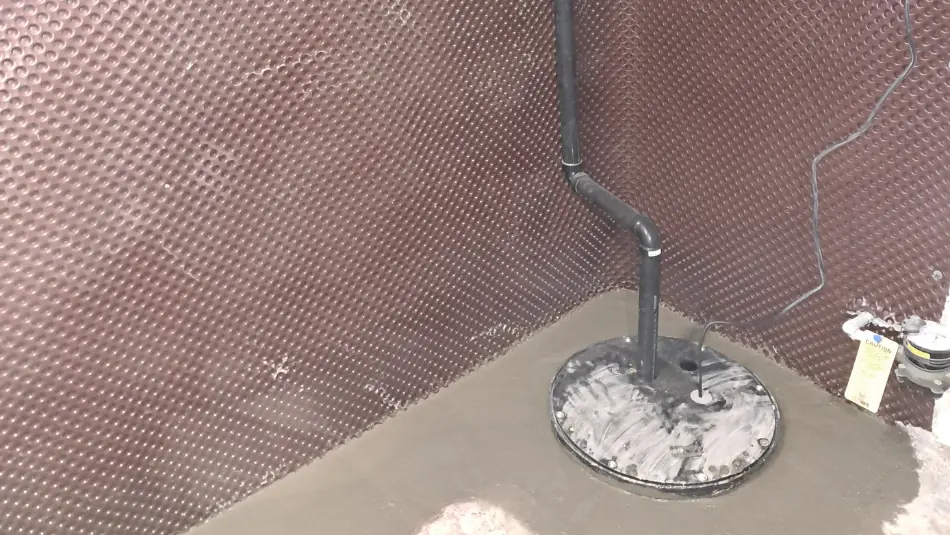

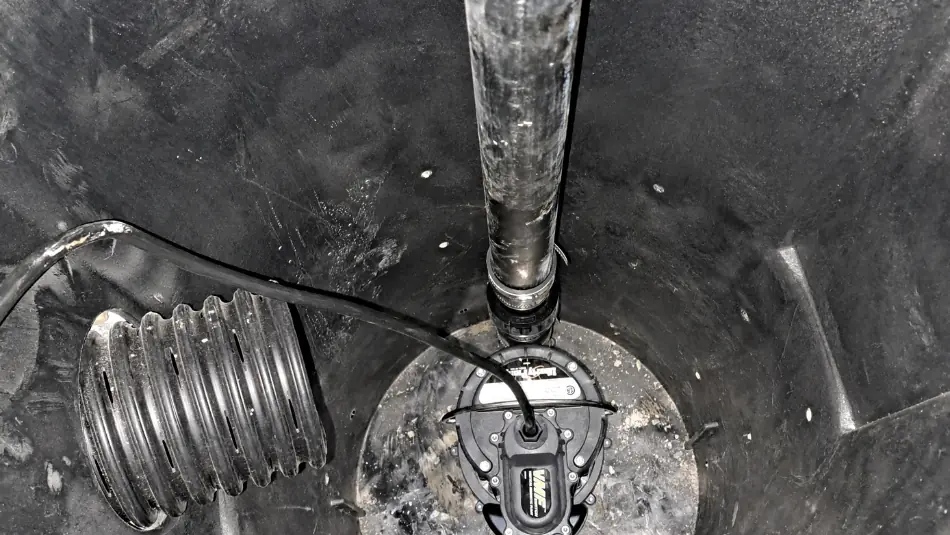

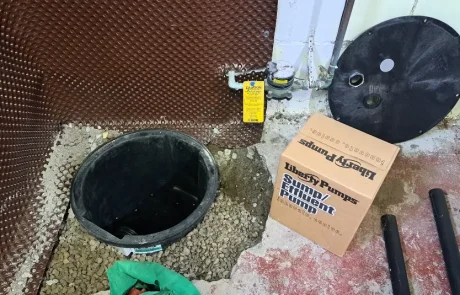

    • Liberty sump pump system supplied and installed within a designated sump basin.

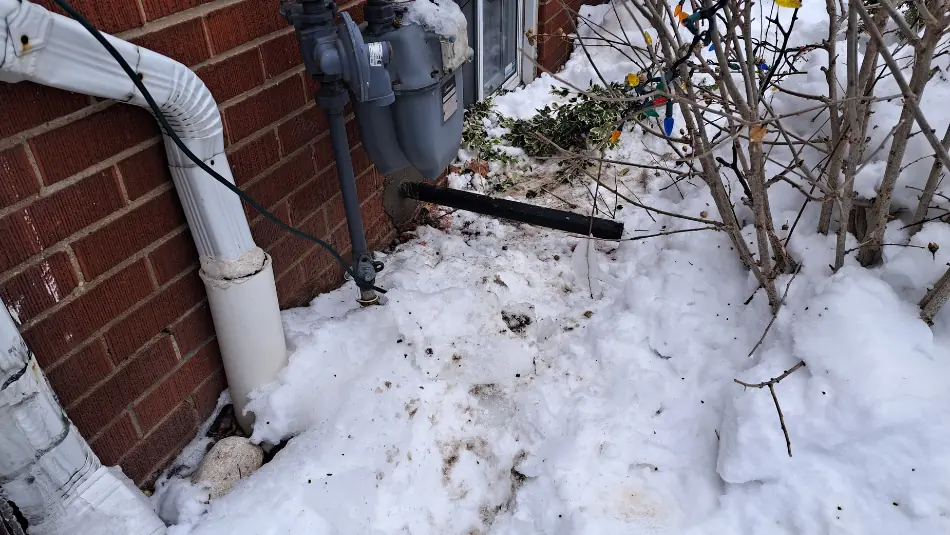

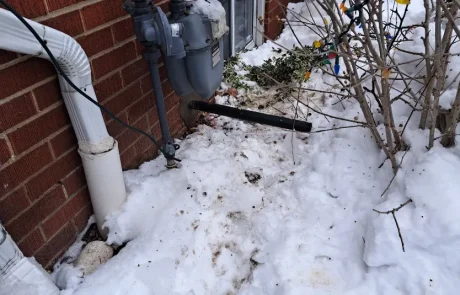

    • Sump pump discharge line routed to an approved exterior discharge location in accordance with municipal requirements.
  1. Concrete Restoration and Clean-Up
    • Interior trench backfilled with gravel and concrete restored to match the existing slab.
    • All excess materials, concrete, and debris were removed from the site, leaving the basement clean and safe.

Conclusion

Interior basement waterproofing was recommended and planned for approximately 16.5 LF of foundation at 104 Rykert Crescent, Toronto, to address active water leakage and reduce the risk of future basement moisture issues. The integration of interior waterproofing, upgraded drainage components, and a Liberty sump pump system provides effective moisture control and long-term protection for the home’s foundation.

These improvements will help maintain a dry basement environment and protect the structural integrity of the residence for years to come.
